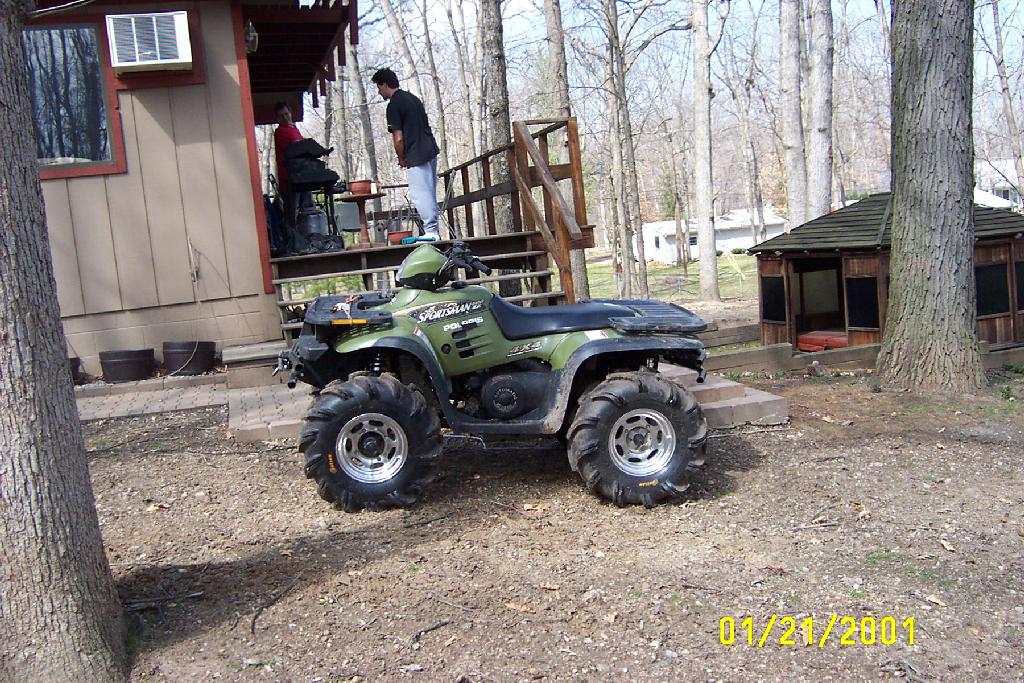

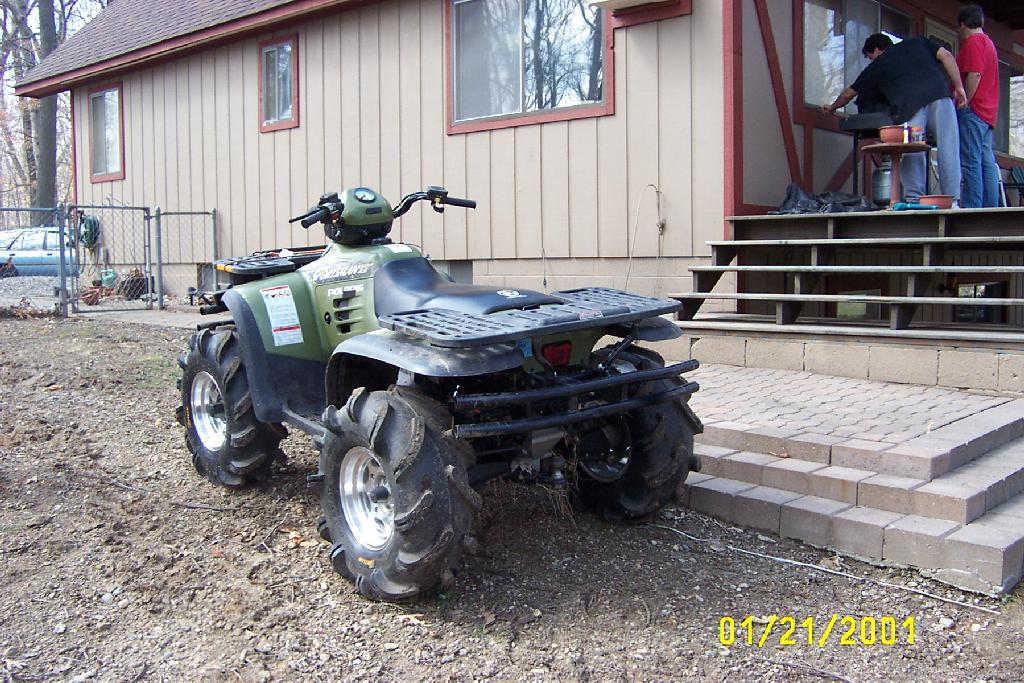

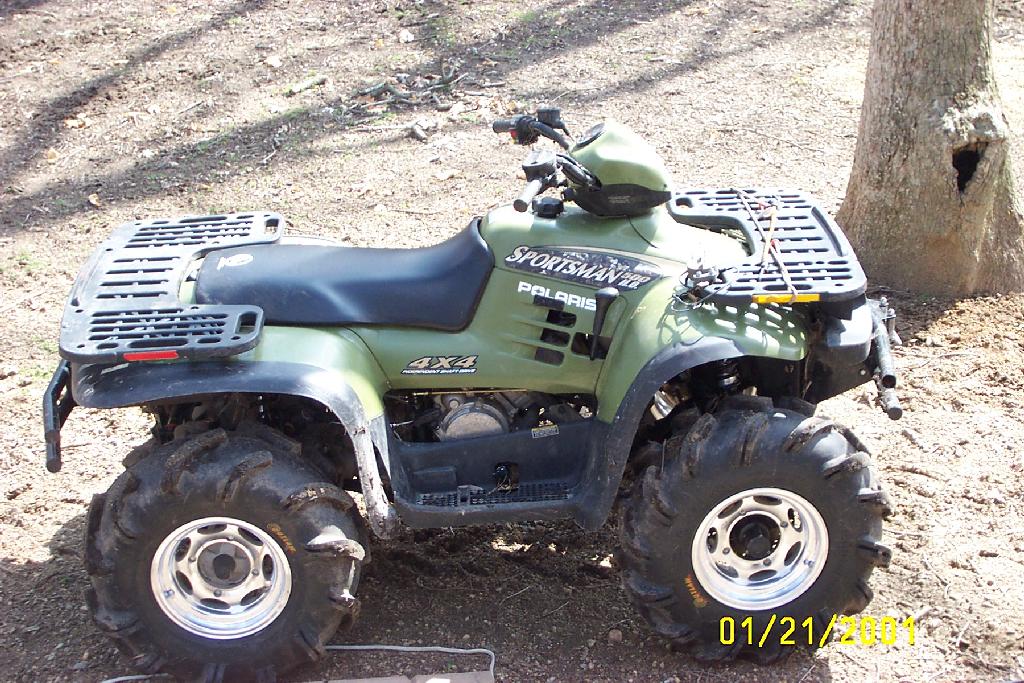

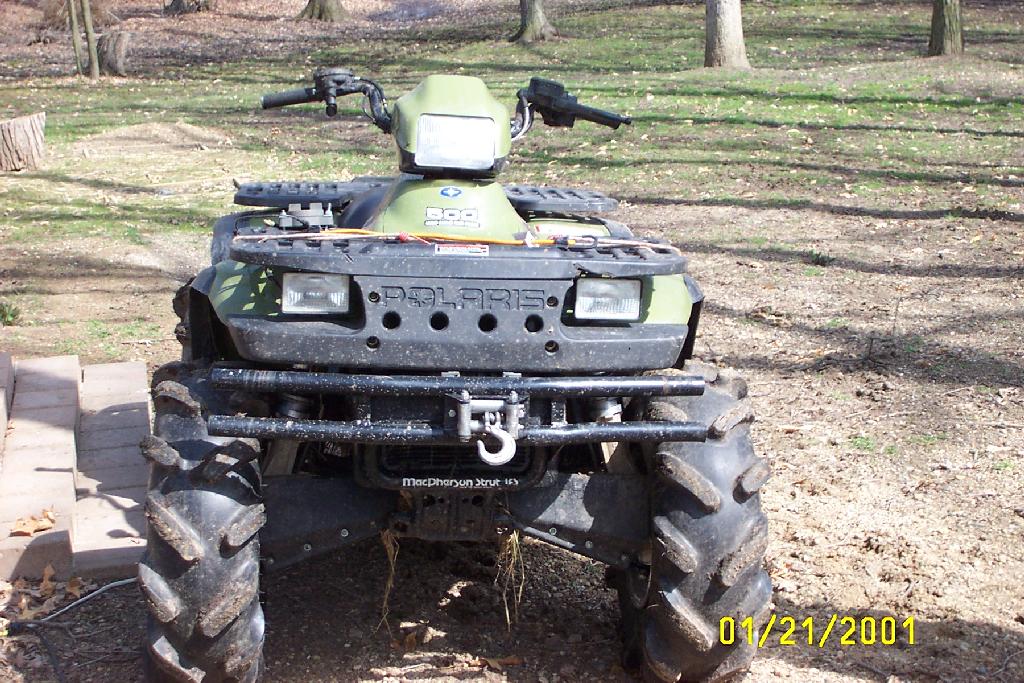

2001 Polaris 500 H.O.
SuperTrapp IDS 2 Exhaust (12 disks)
K&N Air filter
Dyno jet carb kit
Heat Grips
2000lbs WARN wench.
Heat fighter kit
Progressive springs in the front
Lift kit.
ITP Cast Aluminum Rims
27x9.5 OUTLAWS in front
27x12.0 OUTLAWS in the REAR.
Front/Back Bumpers
Saddle bags
Rear hitch + Extension Plate
Stealth Muffler
High Lifter Temperature gauge
LOVE TO TEAR IT UP and DIG IT DOWN!

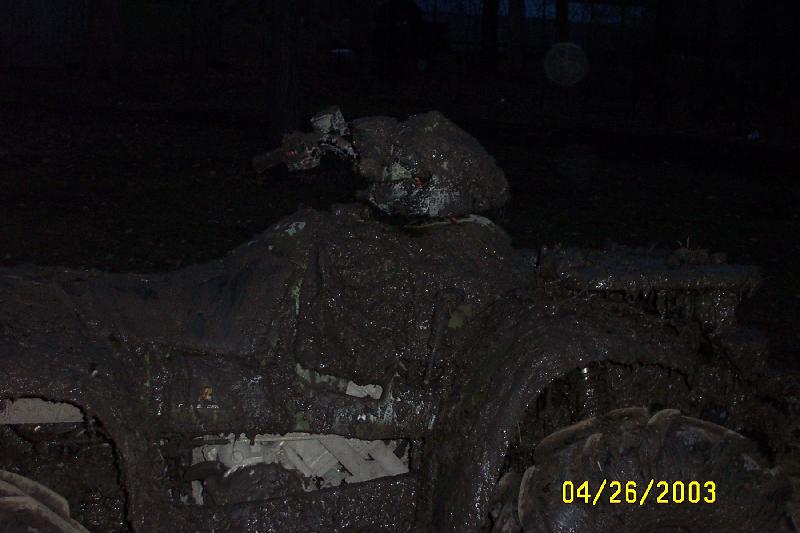

Sunk the quad only once in a pond.
Polaris = Parts because that all that breaks on this thing!!
Here is where you can get the parts manual for the beast.
http://image.polarisindustries.com/corp/manuals/Parts/9916446r03.pdf
Drive Belt with EB
3211077 Belt, Drive (EB)
Might have a new part number now 3211072
IF your quad does not have Engine Braking you need 3211069 Belt, Drive
QTY P/N DESC page
1 1380119 Asm, CV Housing w/Sleeve Page B2
1 5222299 Sleeve, Drive Shaft Seal
1 7670091 Circlip
1 2200773 Kit - Boot Replacement
1 1820951 Asm, Hubstrut, Heavy, RH (42mm) Page B5
2 3554509 Bearing, Tapered Roller
1 1520243 Asm, Hub w/Bearing Race Page B6
1 5211148 Plate, Armature
1 1520281 Clutch, Front Hub, Elec./Mech.
2 3554506 Bearing, Tapered Roller Cone
1 1910550 Asm, Brake Caliper, RH Page B7
2 2201398 Kit - Front Brake Pad
2202595 wheel kit for the hub 1520243 DOES NOT EXIST ANYMORE THIS IS THE
REPLACEMENT part
Polaris Sportsman 500 mechanical tips
Part number for the speed 500 EBS 3280358 3280363 (is Miles)
Sportsman 400 3280129
Broken Wench cable infomation: 60076 $30. Four Wheels Center 800 328 4445 | 3850 Tensile streght
Removing the drive belt or clutch adjsutements for Polaris Sportsman 500 H.0. (2001)
